Jelly3 USB3 IRIS recognition camera with global shutter MU3E200M/ C

FOB Reference Price:Get Latest Price
  • 1 - 49 Pieces
  • >=50 Pieces
Report Suspicious Activity
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Model Number:
Stereo Microscope
Sensor Model:
E2V EV76C570
Pixel Size:
Max. Resolution:
1600 x 1200
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton box
Product Description


Jelly3 series USB 3.0 industrial digital cameras adopt the latest USB3.0 technology, the speed is much faster than USB2.0 digital cameras, the resolution range from 1.2MP to 14.0MP. These cameras have high sensitivity, high dynamic range, hardware frame buffer and high-speed features. Jelly3 series digital cameras can be widely used in machine vision and a variety of image acquisition areas.

1.Mirco USB3.0 High-speed interface, Bandwidth is 5Gb/s, plug and play, no need external power supply;
2.With 32M built-in hardware frame buffer, make sure no frame lost, support more cameras work together;
3.Support GPIO opto-isolated external trigger, External trigger delay setting does not affect the acquisition frame rate;
4.Provide completed API for users’ secondary development, support VC, VB and other development language;
5.Support Windows XP, Win7, Win8, Win10, 32&64 bit operation systems, driver for Linux-Ubuntu & Android Operation System can be customized;
6.Precision aluminum alloy shell, small size 29×29×30mm, weight 45g.
7.3m USB3.0 cable comes with fix screws.

8. Support C-mount interface and customize lens interface.

Jelly3 series USB3.0 industrial cameras are mainly designed for machine vision and various high speed image acquisition areas. They can be used for Gel imaging, License image capture, Medical diagnosis, Microscopy imaging, Notes image capture, Industrial production line image capture, Fingerprint & palmprint image capture, Desktop image, High speed vehicle license plate capture, Outdoor Monitoring, iris capture and etc.

Sensor Type
Sensor Model
E2V EV76C570
Sensor Size
1/1.8 inch
Pixel Size
Max Resolution
1600 × 1200
Frame Rate
Point Frequency
ADC Accuracy
10 bit
Dynamic Range
Scan Mode
Progressive Scan
Image Output
Micro USB3.0, Bandwidth 5Gb/s
Power Supply
USB3.0 Power Supply, 300~500mA@5V
Frame Buffer
32M Bit
Opto-isolated GPIO, 1 channel external trigger input, 1 channel flash output, 1 channel 5V power supply input / output
Main Function
Image display, image capture (bmp,jpg,tiff), video capture(compressor is optional)
Programmable Control
Preview and capture AOI, SKIP/Binning mode, Contrast, Brightness, Saturation, Gamma, Gain, Exposure, Bad pixel remove, Focus Evaluation, User-defined serial Number(0-255), Hardware LUT(lookup table), Hardware CCM (Color Correction)
White Balance
Auto / Manual
Auto / Manual
Image Format
Support 8bit, 24bit, 32bit Image Preview and Capture, Save as “Jpeg”, “Bmp”, “Tiff” format
Driver Support
ActiveX, Twain, DirectShow,VFW
Operation System
Support Windows XP/7/8/10 32&64 bit Operation System (Linux and Android Operation System custom development)
Support VC, VB, C#, DELPHI developing language, support LABVIEW, OPENCV, HALCON, MIL Software
Lens Port
Working Temperature
Storage Temperature
Camera Dimension
29mm(height)×29mm( width)×30mm(length)
Camera Weight
45g(High-precision CNC aluminum alloy shell)
Color cameras come with IR cut filter(mono camera does not have filter), 3m USB cable with fix screws, 6-pin Hirose GPIO connector, 1 CD with software and SDK.
Module Dimension
Camera Weight
Equipped with standard infrared filter(not available in mono camera), 2m USB cable with fix screws, 6-pin Hirose GPIO connector, 1 CD with software and SDK.
Box Dimension
118mm×108mm×96mm (length × width × height)

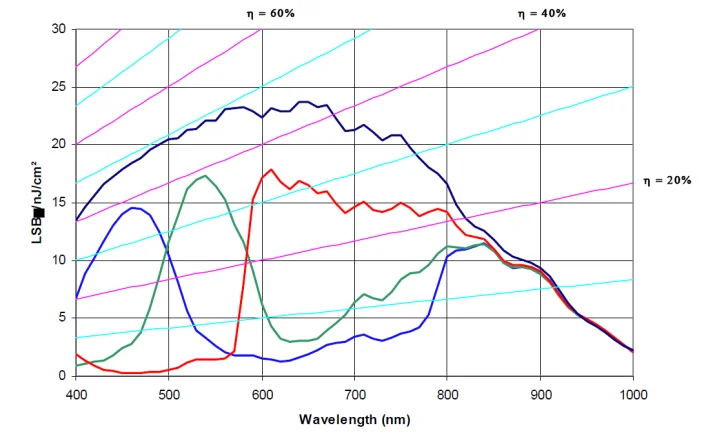

Spectral Response Curve.


GPIO Trigger interface introduction

Power Supply Input Interface.

The camera is powered by USB3.0 Bus Power, the power supply of USB3.0 standard should be 5V@900mA. In actual applications, sometimes the host is not insufficient for power supply, or because the USB cable is too long, or because of anti-interference requirements, users can use “5V_IN” interface of GPIO to provide power supply for the camera. To ensure stable work of the camera, power requires DC + 5V, Min. = + 4.5V, Max. = + 5.5V; the drive current> 1A.

GPIO Input Interface

The following figure is the schematic diagram of GPIO input, the input signal has been insulated by opto-coupler TLP281. 200 ohm resistor is in series connection inside the camera. GPIO input interface is generally used for external trigger input signal synchronization acquisition for multi-camera, It also can be used as an external signal acquisition, please refer to the instructions in SDK (software development Kit) for detailed applications.

TLP281 conversion performance.

The camera's internal optocoupler VCC = 5V, If IF = 16mA, then the external trigger input Rising edge Delay is 2us, Falling edge Delay is 25us;
When using “TRIGGER_IN +” as trigger source, the trigger electrical level range is 0V- + 5V. If the trigger source electrical level is out of this range, an external current limiting resistor should be connected, the optocoupler works under current of 10mA. Limiting resistor is calculated as follows:
R = 100 x ( Vin – 0.7 ) – R0
Vin is Trigger source electrical level
R0 is The camera's internal series resistor 200 Ohm
R is the required external series resistor.

Under normal temperatures (0- + 50 degrees) , the maximum operating current of the optocoupler is 50mA, standard operating current is 10mA, if it exceeds the maximum allowable current, optocouplers may be burned..

GPIO Output Interface

The figure below is the schematic diagram of GPIO output interface, the output signal has been isolated through the optocoupler TLP281, coupled with an NPN audion to magnify drive capability; GPIO interface is generally used to output camera flash light signals, users also can output signal through SDK.
1. GPIO work as a normal IO output.

The following figure shows the ordinary connection when output interface work as normal IO output, the user needs to provide external power supply and pull-up or pull-down resistors.

In the figure, “POWER” is the power supply for the user, “WR_GPIO” is the output electrical level signal which is set by the user in SDK. “GPIO_OUTPUT” is the output signal, please note that the output electrical level of the 2 connections is just the opposite.

2. GPIO output to drive external load.

GPIO output interface is an open-drain output, it has certain drive capability to directly drive a small power device, as below figure, it is connected to 5V LED indicating light or low power flash lights.

3. GPIO output interface connected with flash light controller

The flash trigger interfaces of flash light controller are generally divided into the switch trigger and electrical level trigger two kinds; wire connection diagram is as follows:

In the figure, “POWER” and “GND” are external power supply for the user, the electrical level should meet the interface requirements of flash light controller.
