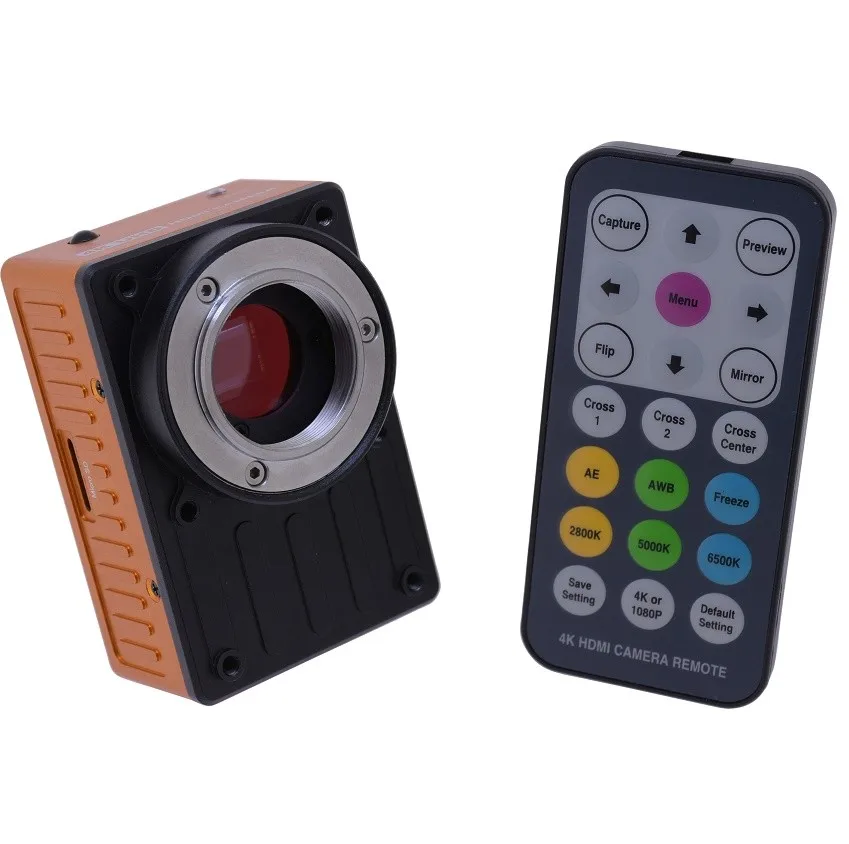

As the 4k resolution UHD Screen is more and more popular,1080p HDMI cameras seems can not be effectively use the screen to show the image details. Based on the latest HD high speed CMOS image sensor, the FPGA hardware image processor and HDMI V1.4 standard, our company released the HDS800C 4k UHD HDMI industry camera. The camera adopts high sensitive 1/1.9 inch(pixel size 1.85um) 8.0 Mega pixel color CMOS image sensor, the sensor has high dynamic range, high sensitivity and excellent thermal noise suppression features. The camera can be connected to 4K UHD Screen to preview and real-time capture the BMP&RAW image to TF card(mini SD card), it support Max. 64GB TF card. The camera is plug and play. The 4k UHD camera can ensure every detail is not to be missed. The camera can not take videos, if you want to take videos, the cameras should be connected with HDMI image acquisition card, The cameras can take both images and videos when they are connected to image acquisition card. The cameras comes with IR remote controller, no shaking when take pictures.
Features 1.High resolution. The 4K UHD cameras output 4k resolution(3840 x 2160), the resolution is four times as large as 1080p cameras. 2.High speed frame rate(Max. 30fps), no compression, no interpolation, Max. Transmission bandwidth is 5.97 Gb/s. 3.Equipped with IR remote control, which can realize fast parameter adjustment, support hardware auto white balance, auto exposure, 2800k\5000k\6500k color correction, two groups of cross line adjustment, Image flip, mirror, freeze, capture, preview, parameter saving and other functions. 4.Support the firmware updated by TF card. 5.CNC processed aluminum alloy casing, industrial standard circuit board, precise and reliable. Provide 3 years warranty.
Application HDS800C 4K UHD HDMI digital camera can be widely used in video conferencing, remote medical diagnosis, microscopy images, industrial inspection, video projectors, security monitoring field. With the high image quality and easy to operate features, it will be your best assistant for following applications: Live Cell Imaging Surgical Microscopic Imaging Pathology Cytology Defect Analysis Semiconductor Inspection Metrology Navigation for Processed Imaging Industrial Optical HD Digital Imaging Astronomical Observation
4K@30FPS / 1080P@60FPS
1/1.9" CMOS sensor (Sony IMX226)
BMP / RAW
BMP image Capture, Preview, Freeze, Mirror, Flip, Cross line, AWB, AE, Gain, Color temperature preset, Parameter save, Resolution switching, Restore Setting and other functions.
TF Card Max. 64Gb
DC 12V 2A
IR Remote Controller *1, 12V 2A Power Supply*1, HDMI Cable*1

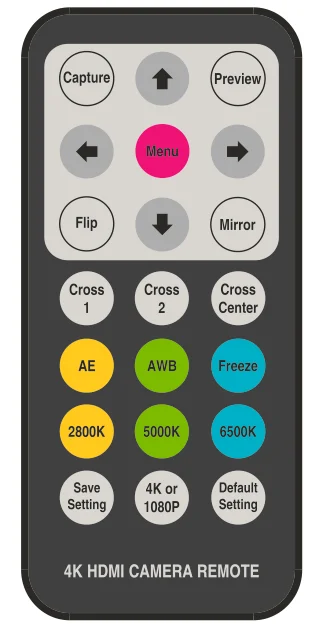

IR Remote Controller
Operation Instruction .
Connect the display with 4K Camera through HDMI interface. Plug the power supply and boot the camera, the screen will show objective’s image when lens aims at it. User can control 4K Camera and carry on following operations by using remote controller. (Be aware to pull out the separator paper while using the remote controller for the first time).
