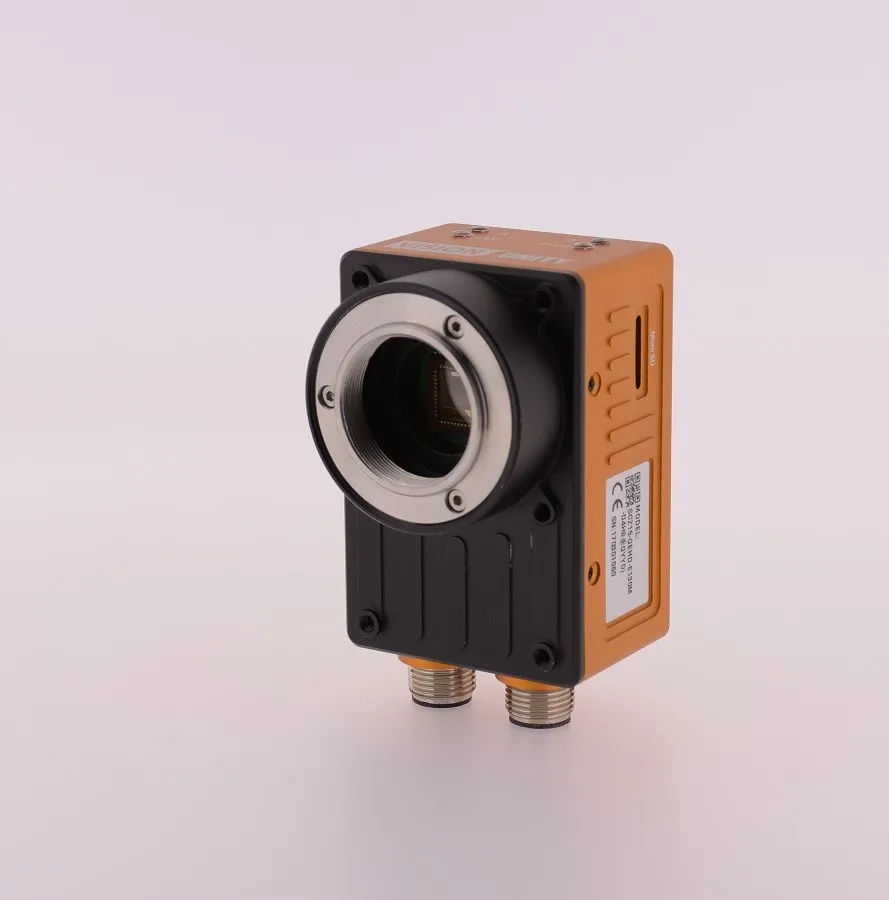

Newc SCZGE China supplier global shutter high quality Smart Camera

FOB Reference Price:Get Latest Price
$1,500.00 - $2,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Catchbest
Model Number:
SCZE130M-GEHD
Sensor:
CMOS
Highest Dominant Frequency:
866Mhz
Memory:
1GB DDR3 SDRAM
Image Sensor:
1/1.8" CMOS sensor, E2V EV76C560
Effective pixels:
1.3MP
Type:
Digital Camera
Style:
Mini Camera
Technology:
NetWork
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Strong Carton with Polyfoam Protection
Port
Beijing
Video Description
Product Description

Introduction

With technical progress in FPGA, the ARM-based SoC FPGA platform integrates an enhanced ARM processor, customizable FPGA, memory controllers and peripherals, which allow traditional industrial cameras and PC systems combination change to a compact smart camera with functions of image capture, process, analyze and transmission. Miniaturization, distributed, networked and highly integrated embedded intelligent vision system is becoming a trend of future.

Our latest SCZGE series smart camera adopts Xilinx's latest Zynq-7000 All Programmable SoC platform, which is based on a 28nm technical process, tightly integrates the ARM processor and FPGA framework. PS unit has high performance and low power consumption features of dual-core ARMCortex-A9 MPCore; PL unit has up to 74K logic unit and 160 DSP hardware processing unit; integrated 1GB DDR3 memory and 4GB eMMC. The SCZGE series smart camera can meet the strict requirements of industrial vision HD acquisition, high-speed real-time processing, compact structure and high reliability.

At the same time the camera has various of peripheral interfaces, GigE, RS232, HDMI, TF card, GPIO, etc., with the tailored custom linux kernel v4.0.0 version which is released in 2015 and embedded image acquisition SDK interface, the camera can simplify visual application development process, adapt to complex and changing industrial field applications. In addition, with Vivado HLS, a hardware acceleration tool which is provided by Xilinx, can convert users’ parallelizable C / C ++ image processing algorithms into VHDL or Verilog hardware description language and use the FPGA in the system to accelerate hardware and optimize system performance.



Specifications
Model
SCZE130M-GEHD
CPU
Dual-core ARM Cortex-A9 processor
Highest Dominant Frequency
866Mhz
Memory
1GB DDR3 SDRAM
FLASH
4GB eMMC
Extended Storage
TF Card, support upto 64Gb
Peripheral Interface
1 USB2.0 HOST, 1 RS232, 1 GigE, PS MIO with optocoupler isolation, 4 outputs / 2 inputs, 1 external trigger input, 1 flash output, 1 HDMI output, 1 USB input
Indicating Light
1 power indicator, 2 user-programmable bi-color working status indicator, 1 bi-color network status indicator
Image Sensor
1/1.8” CMOS sensor, E2V EV76C560
Shutter
Global shutter
Effective pixels
1.3MP
Resolution
1280x1024
Pixel Size
5.2µm
Frame Rate
60fps
Color
Mono
Lens Mount
C-Mount
Power Input
6V-24V DC
Power Consumption
5W
Working Temperature
0-60℃
Storage Temperature
-30 - 80℃
Camera Size
70.0 mm x 47.0 mm x 32.5mm
Camera Net Weight
180g
Accessories
12V power supply / M12-8 Gigabit Ethernet cable / M12-15 power cable / HDMI cable

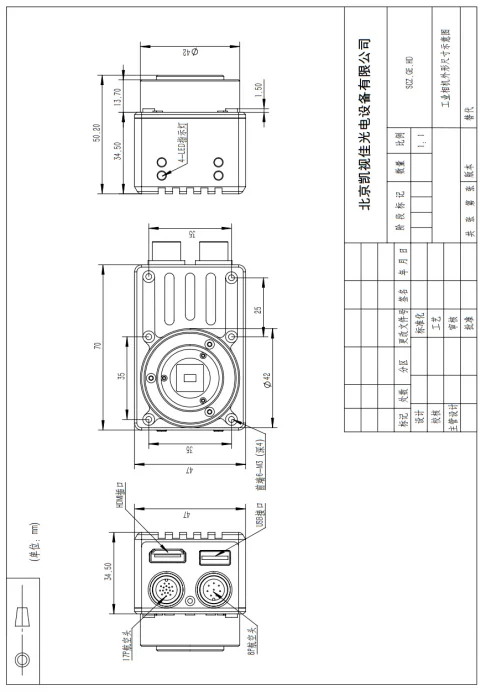

Dimension



Camera Interface Illustration

M12-17P Aviation plug Interface

M12-17 Core Male interface connection illustration
Serial No.
Color
Function
1
Orange(thick)
12V_IN
2
Red
RS232_RXD
3
Blown
RS232_TXD
4
Pink(thick)
USB_5V
5
Grey
USB_D-
6
Black
USB_D+
7
White/Red(thick)
USB_GND
8
White/Blue
GPIO_OUT2
9
Yellow
GPIO_OUT3
10
Purple(thick)
GPIO_GND
11
Yellow/Green
GPIO_OUT1
12
Green/Black
GPIO_OUT0
13
White
GPIO_INPUT1
14
Blue
GPIO_INPUT0
15
Green
FLASH
16
Green/Brown
TRIGGER
17
Black/White(thick)
GND
Coating
Red/Black
Note: Cable is 1 meter, tail has not been treated

M12-12P Aviation plug Interface.

M12-17 Core female interface connection illustration
Serial No.
Color
Function
1
White/Orange
MD1_P
2
Orange
MD1_N
3
White/Green
MD2_P
4
Blue
MD2_N
5
White/Blue
MD3_P
6
Blue
MD3_N
7
White/Brown
MD4_P
8
Brown
MD4_N
Coating
braided shield

Note: CAT 6 shielded cable length 2 m, tail pressured with 8P shielded crystal head (not injection molding)
