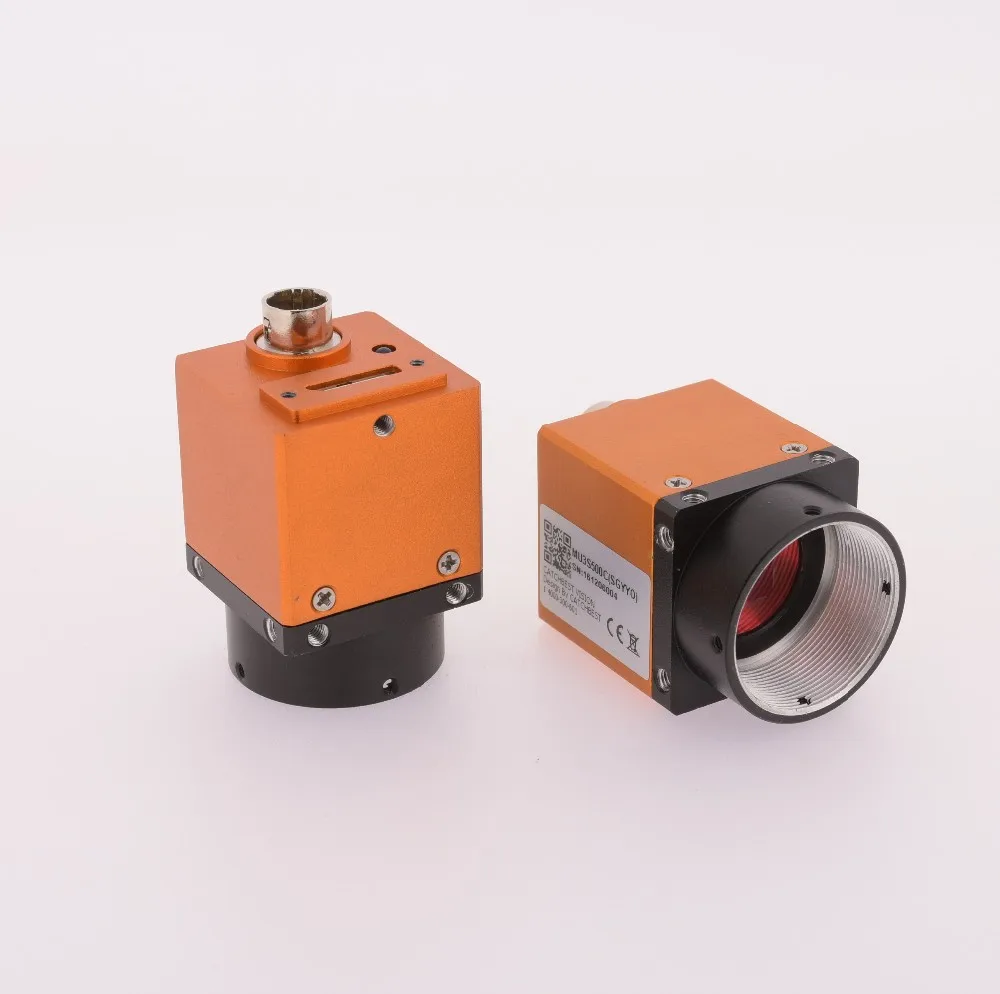

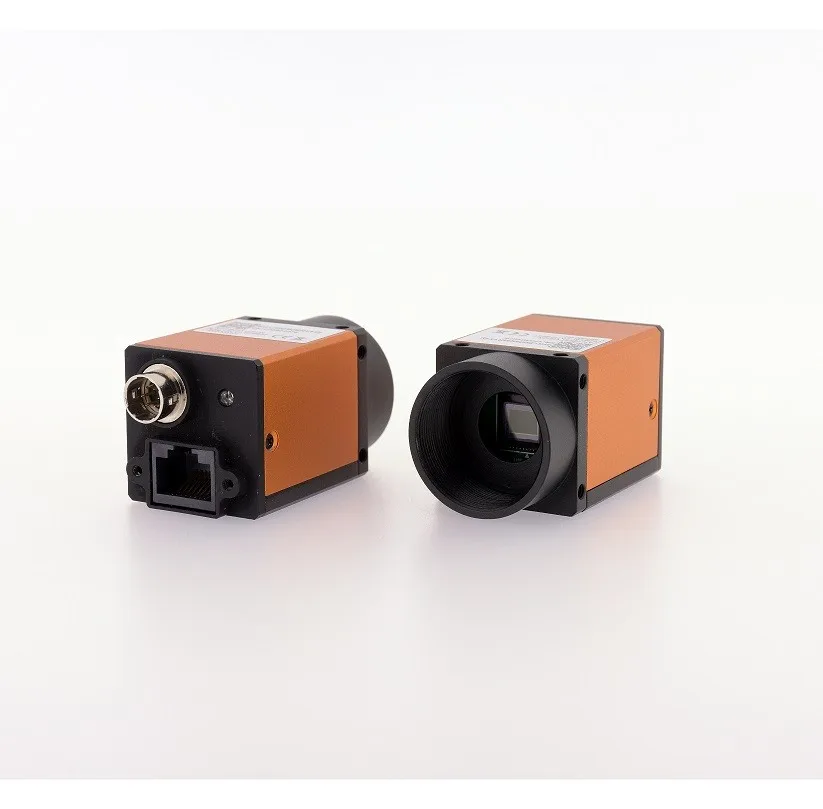

Jelly5 Professional SDK 5mp Global Shutter Industrial GigE Vision Camera

FOB Reference Price:Get Latest Price
  • 1 - 49 Pieces
    $365.00
  • >=50 Pieces
    $345.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Catchbest
Model Number:
MGC500M/C
Sensor:
CMOS
Sensor Model:
Aptina MT9P031
Sensor size:
1/2.5 inch
Pixel Size:
2.2μmx2.2μm
Max. Resolution:
2592 x 1944
Technology:
NetWork
Type:
Digital Camera
Style:
Mini Camera
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton box
Port
Beijing
Product Description

Introduction

Jelly5 series GigE Vision industrial digital cameras adopt the latest GigE Vision technology, the cameras allow distant fast image transfer with low cost. The cameras support hot-plug, flash light, and external trigger. Jelly 5 series digital cameras can be widely used in machine vision and a variety of image acquisition areas.



Features

1.Adopt GigeE Vision interface, the utmost transmission distance can be up to 100 meters with Super 5 types network cable;
2.Mono and color cameras resolution from 1.2MP to 14.0MP;
3.Global shutter series 60fps 1.2MP, 60fps 1.3MP, 50fps 2.0MP;
4.Rolling shutter series 14fps 5.0MP, 6.5fps 14.0MP;
5.Support AOI, exposure adjustment, gain adjustment, GPIO Opto-isolated external trigger interface;
6.GigE Vision protocol, provide completed SDK for users’ secondary development, support VC, VB, C# development language and LABVIEW, HALCON, VISIONPRO 3rd party software;
7.Support Windows XP, WIN 7, WIN 8, WIN 10 32&64 bit and Linux 32&64 bit operation systems;
8.CNC processed high precision aluminum alloy housing, size 29×29×37.5mm;
9.Support C-mount interface and customize lens interface;
10.12V external power supply, power <3w..

Application
Jelly5 series GigeE Vision industrial cameras are mainly designed for machine vision and various image acquisition areas. They can be used for Gel imaging, License image capture, Medical diagnosis, Microscopy imaging, Notes image capture, Industrial production line image capture, Fingerprint & palmprint image capture, Desktop image, High speed vehicle license plate capture, Outdoor Monitoring, iris capture and etc..

Specifications
Model
MGC120M/C
Sensor Model
Aptina AR0134
Color/Mono
mono/color
Sensor Type
CMOS
Scan Mode
Progressive Scan
Shutter
Global Shutter
Effective Pixel
1.2MP
Sensor Size
1/3 inch
Pixel Size
3.75μm×3.75μm
Max Resolution
1280 × 960
Frame Rate
60fps
Min. Exposure Time
17μs
SNR
38dB
Dynamic Range
64dB
Image Output
GigE interface, Bandwidth 1Gb/s
Power Supply
External Power Supply, 12V 1A
Frame Buffer
128MB
Input / Output
Opto-isolated GPIO, 1 of external trigger input, 1 of flashlight output, 1 of 12V power input
Main Function
Image preview, image capture, video capture
Programmable Control
Capture field of view AOI, SKIP/Binning mode, RGB Gain, Exposure, Fixed frame rate, External trigger capture
White Balance
Auto / Manual
Exposure
Auto / Manual
Image Format
Support 8bit, 24bit, 32bit Image Preview and Capture, Save as “Jepg”, “Bmp”, “Tiff” format (mono cameras support 8bit bitmap)
Supported Standard
GigE Vision
Operation System
Support Windows XP/7/8/10 32&64 bit, Linux 32&64 bit Operation System
SDK
Support VC, C#, VB, DELPHI developing Language, LABVIEW, OPENCV, HALCON, MIL software
Lens Interface
Standard C-mount (CS-mount and M12 mount is optional)
Working Temperature
0°C~60°C
Storage Temperature
-30°C~70°C
Camera Dimension
29mm(height)×29mm( width)×37.5mm(length)
Camera Weight
54g
Warranty
3 Years
Accessories
Color cameras come with IR cut filter(mono camera does not have filter), 3m GigE cable(5m is optional) with fixing screws, 6-pin Hirose GPIO connector, external trigger cable(2 pins for power supply), 1 CD with software and SDK.

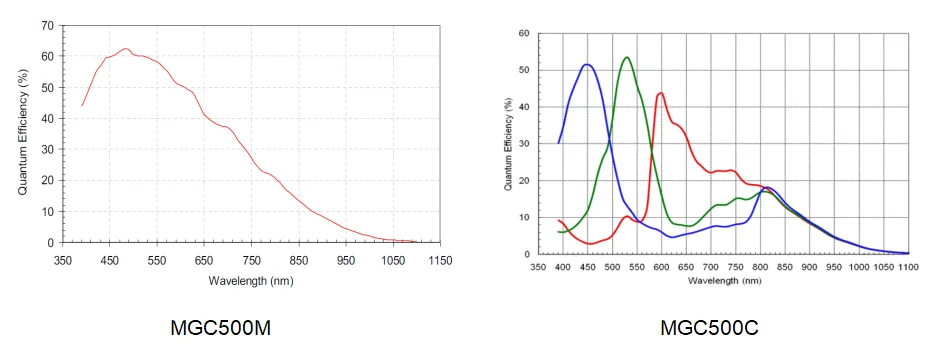

Spectral Response Curve.

Dimension



GPIO Trigger interface introduction

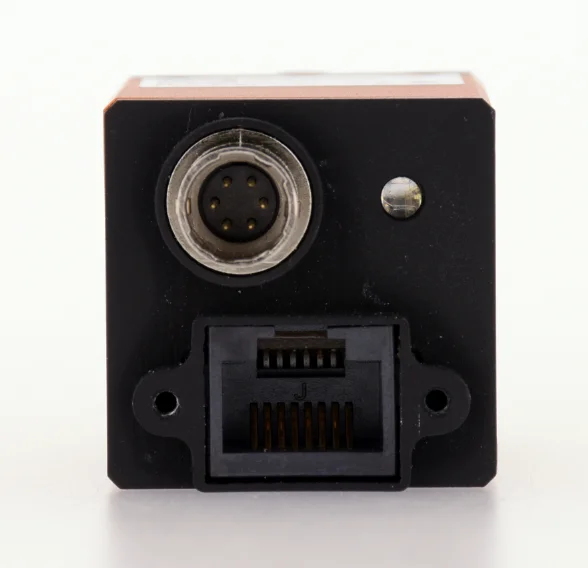

Gige Interface.

From the above picture, you can see the GigE interface.

Note:
1) Please use Super 5 types of network cable or above.
2) Please use the network cable which has fixing screws, please fix the cable to the camera when you are using the camera.


Lens Interface

Note:
1) The cameras adopt standard C-mount lens interface, can be compatible with manual C-mount lenses.
Compatible Software

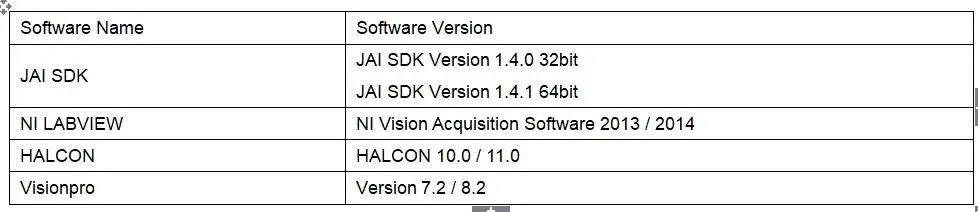

The cameras meet GigE Vision 1.2 protocol, can be compatible with the software which has GigE Vision protocol driver functions. The software in the following table have been tested and compatible:
