Jelly 2 USB 2.0 industrial CMOS camera MUC36M/C(MGYYO)

FOB Reference Price:Get Latest Price
  • 1 - 49 Pieces
    $175.00
  • >=50 Pieces
    $166.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Catchbest
Model Number:
MUC36M/C(MGYYO)
Sensor:
CMOS
Sensor Model:
Aptina MT9V034
Color:
Mono/Color
Effective Pixels:
0.36MP
Max. Resolution:
752 x 480
Technology:
NetWork
Type:
Digital Camera
Style:
Mini Camera
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton box
Port
Beijing
Product Description

Introduction

Jelly2 series smart industrial cameras are mainly designed for machine vision and various image acquisition areas. The cameras are very compact, occupy a very small space, can be used on machines or solutions which have limit space. Resolution from 0.36MP to 5.0MP, speed upto 110fps, support global shutter and rolling shutter, support opto-couplers isolation GPIO, support multi-cameras work together, compact and light.



Features
1. 0.36MP, 5.0MP resolution, total 6 models mono/color industrial digital camera;
2. USB2.0 interface, up to 480Mb/s, Plug and play, no need external power supply;
3. Provide completed API for users’ secondary development, provide Demo Source Code, Support VC, VB, DELPHI, LABVIEW and other development language;
4. Support firmware upgrade on-line;
5. Support Windows XP / Vista / 7 / 8/10 32&64 bit Operation System, can customize for Linux-Ubuntu, Android Operation System;
6. CNC processed precision aluminum alloy shell, size is 29mm×29mm×30mm, net weight: 35g;
7. Board camera is available.

Application
Jelly2 series industrial cameras are mainly designed for machine vision and various image acquisition areas. They are mainly used for following areas:
Medical and life sciences Area
Microscope Imaging
Medical diagnosis
Gel Imaging
Live Cell Imaging
Ophthalmology and iris imaging

Industrial Area
Electronics and semiconductor inspection
Visual positioning(SMT/AOI/Glue dispenser)
Surface defect detection
3D scanning machine
Printing quality inspection
Food and medicine bottles inspection
Robot welding
Tag OCR/OCV identification
Robot arm visual positioning
Industrial production line monitoring
Vehicle wheel alignment machine
Industrial Microscope
Road toll and traffic monitoring
High speed vehicle plate image capture

Public security and investigation
Biometrics
Fingerprint, palm print image capture
Facial recognition
License image capture
Documents and notes image capture and identification
Spectroscopy testing equipment

Specifications
Model
MUC36M/C(MGYYO)
Sensor Model
Aptina MT9V034
Color
Mono/Color
Image Sensor
NIR Enhancing CMOS
Sensor Size
1/3”
Effective Pixels
0.36MP
Pixel Size
6.0μm×6.0μm
Sensitivity
4.8V/lux-sec
Max. Resolution
752 × 480
Frame Rate
60fps
Exposure Mode
Global Shutter
Dot Frequency
27MHz
Dynamic Range
55dB~100dB
Signal Noise Rate
>45dB
Frame Buffer
32MB Frame buffer
Scan Mode
Progressive Scan
Spectral Response
400nm~1000nm
Input & Output
Optocoupler isolation GPIO, 1 of external trigger input, 1 of flash light output, 1 of 5V input/output
White Balance
Auto / Manual
Exposure Control
Auto / Manual
Main Function
Image preview, image capture(bmp, jpg, tiff), Video record(compressor is optional)
Programmable Control
Preview FOV ROI, Capture FOV ROI, SKIP/Binning mode, Contrast, Brightness, Saturation,Gamma value, RGB color gain, exposure, dead pixels remove, focus evaluation, custom serial number (0 to 255)
Data Output
Mini USB2.0, 480Mb/s
Power Supply
USB2.0 Power Supply, 200-300mA@5V
Compatible Interface
ActiveX, Twain, DirectShow, VFW
Image Format
Support 8bit, 24bit, 32bit image preview and capture, save as Jpeg, Bmp, Tiff format
Operation System
Windows XP/VISTA/7/8/10 32&64 bit OS (can customize for Linux-Ubuntu, Android OS)
SDK
Support VC, VB, C#, DELPHI developing Language; OPENCV, LABVIEW, MIL thirty-parties’ machine vision software
Lens Interface
Standard C-Mount ( CS and M12 mount are optional)
Work Temperature
0°C~60°C
Storage Temperature
-30°C~70°C
Camera Dimension
29mm×29mm×30mm((C-mount is not included))
Module Dimension
27mm×27mm×22mm
Camera Weight
35g
Accessories
Equipped with standard infrared filter(not available in mono camera), 2m USB cable with fix screws, 6-pin Hirose GPIO connector, 1 CD with software and SDK.
Box Dimension
118mm×108mm×96mm (length × width × height)

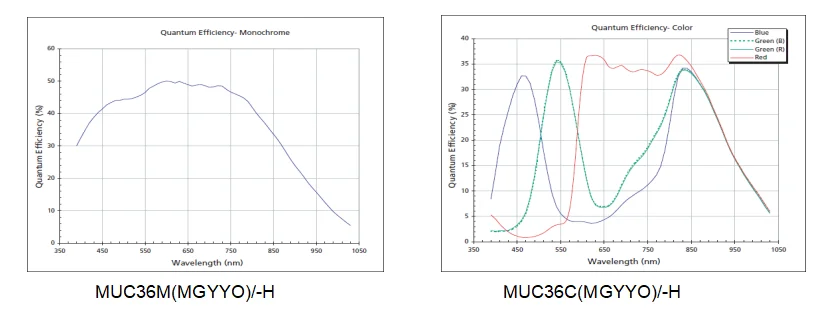

Spectral Response Curve.

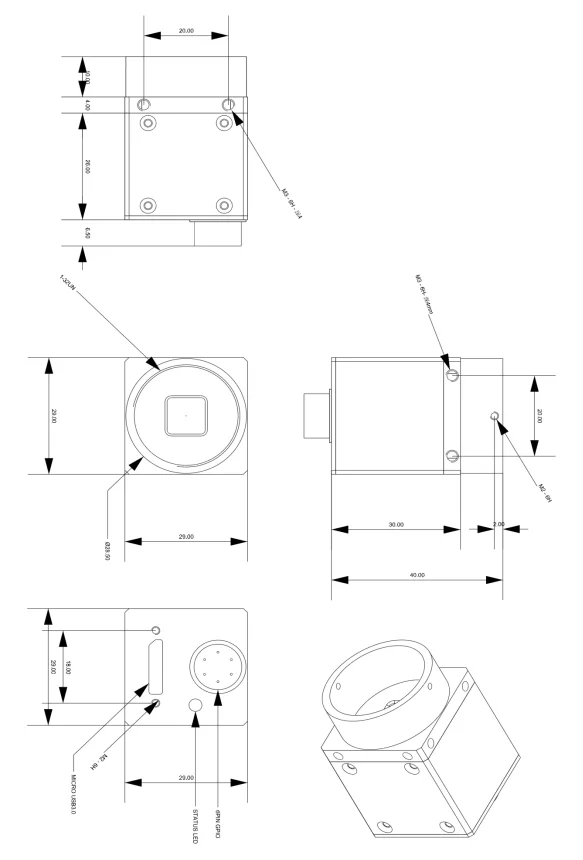

Dimension

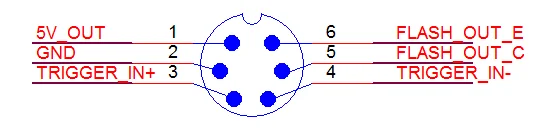

GPIO Trigger interface introduction

Power Supply.

The camera is powered by USB2.0 BUS POWER, the power supply is 5V@500mA, The BUS POWER provide power supply to the camera, at the same time, it provides power supply via diode SMB540, the power is about 200mA@5V.

GPIO Input Interface

The following figure is the schematic diagram of external trigger input, the inputted signal has been insulated by opto-coupler TLP281.

TLP281 conversion performance.

The camera's internal optocoupler VCC = 5V, If IF = 16mA, then the external trigger input Rising edge Delay is 2us, Falling edge Delay is 25us;
When using “TRIGGER_IN +” as trigger source, the trigger electrical level range is 0V- + 5V. If the trigger source electrical level is out of this range, an external current limiting resistor should be connected, the optocoupler works under current of 10mA. Limiting resistor is calculated as follows:
R = 100 x ( Vin – 0.7 ) – R0
Vin is Trigger source electrical level
R0 is The camera's internal series resistor 200 Ohm
R is the required external series resistor.
Under normal temperatures (0- + 50 degrees) , the maximum operating current of the optocoupler is 50mA, standard operating current is 10mA, if it exceeds the maximum allowable current, optocouplers may be burned..



GPIO Output Interface (control flashlight).

For some flash light which has Rising edge input (We can measure the flash light pin to determine whether there is a Rising edge input, if we have measured a pin has electrical level signal, it can be judged there is Rising edge electrical level internal the flash light, such as the K-150A models flash light, one of the synchronous trigger pin end is + 5V, and the other end is GND), you can use the connection diagram below:
